Product codes

Product codes

Overview

Codes can help you quickly find your products and can be used on barcodes. Often, products you buy might already have a code you can use.

Codes should:

  • Be short and unique.

  • Have a logical pattern to your codes.

  • Avoid leading zeros or special characters including:

    • #

    • &

    • ,

    • *

    • |

    • '

    • "

There are three different types of codes in Cin7 Omni.

  • Style Code

  • Code

  • Size Code



Product structure

To understand how products should be coded, it may be helpful to first understand how products are structured in Cin7 Omni.

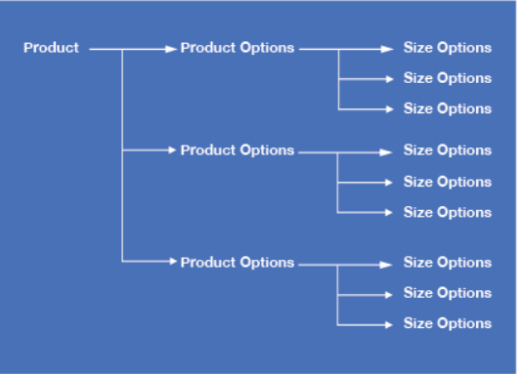

In the diagram above, Products are the top level of the tree. Each Product has at least one Product Option. For the most basic product, there may only be one Product Option per Product; that's completely normal.

Often, one Product may have multiple Product Options. Product Options, sometimes referred to as variants, are variations of a product, either by color, size, weight, material - anything you like.

There is one further level a product can have, Size Options. Size Options are only relevant to "fashion products" (i.e., products that have multiple sizes like Small, Medium and Large and crucially, the price does NOT change for each option). Think of a t-shirt, for example. A t-shirt might have multiple Product Options (it can come in blue or red) and each of those Options will have multiple Size Options (i.e., S, M, L).

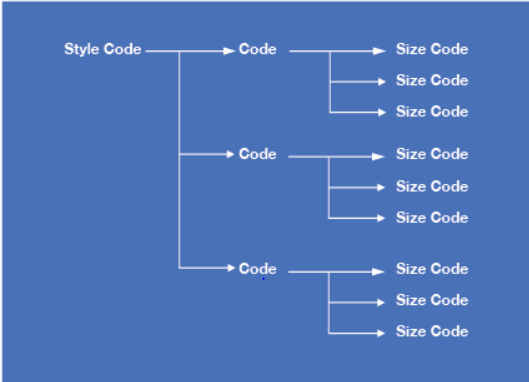

You'll see that the Cin7 Omni product coding system follows the same pattern:

Each Product in the system will have a Style Code. A Style Code is a code that identifies each Product in the system. This code should be unique.

Each Product Option will have a Code. The Code is the code you will be most familiar with; you might refer to it as a SKU. This is the unique code that distinguishes each Product Option.

For those with Size Options, sizes must also have a unique code (i.e., a Size Code).

All the codes mentioned here are explained in more detail, with examples, below.

Style code

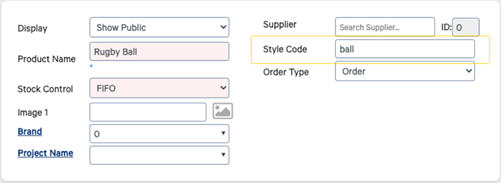

The Style Code field can be found at the top of the Product details page and should be a unique code.

If you have a Product with only one option, it is completely fine for the Style Code to be the same as your Code. In fact, if you create a product in the system and do not enter a Style Code, the system will automatically populate the Style Code with the Code for you.

In order to update your products in bulk, the Style Code must be populated and unique for each product.

Code

As mentioned above, the Code field is the standard product code you will be familiar with, often referred to as the SKU (or Stock Keeping Unit).

Let's have a look at some different examples of product codes.

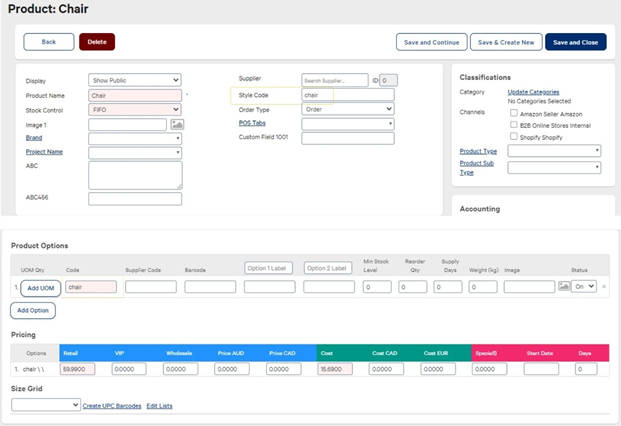

The following is the chair product again, which has just one option. Note that the Code is the same as the Style Code in this instance.

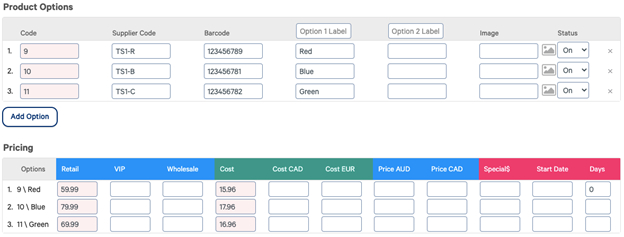

Suppose the Chair was to come in different types of wood. Multiple Product Options would be created to support this:

Note how each Code is unique but related to the Style Code in a logical fashion. Each Product Option, for each type of wood, has a different price and cost.

Size code

Size codes are only relevant for "fashion products". As mentioned above, fashion products have multiple sizes, but each size has the same price.

Let's use our example of a t-shirt that can come in "red" and "blue", and in sizes XS, S, M, L, and XL.

The Style Code is going to be "TS1", and the Code for each Product Option will be "TS1-R" and "TS1-B". For each of these Codes, Size Codes are needed:

TS1-R-XS
TS1-R-S
TS1-R-M
TS1-R-L
TS1-R-XL
TS1-B-XS
TS1-B-S
TS1-B-M
TS1-B-L
TS1-B-XL

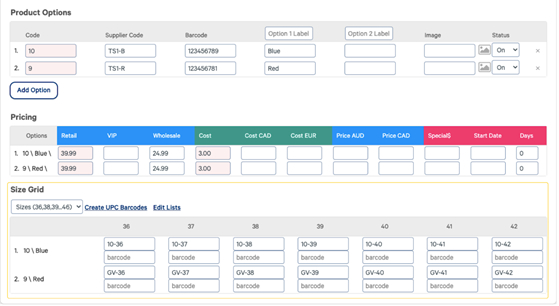

Note how the codes above are formatted in a logical way, by adding each new stage to the code. In the Products page in Cin7 Omni, the product would look like this:

FAQs

Why is a Style Code necessary?

Cin7 Omni has the capability of handling complex products in ways that no other system can offer. The Style Code helps keep your product data organized by implementing a consistent and logical coding scheme to suit all product shapes and sizes.

How do barcodes fit into all of this?

Barcodes will work in compliment to the coding structure above; see the Product Barcodes Help article for additional detail.

I don't have codes in Shopify. Do I need codes in Cin7 Omni?

Yes. Shopify does not require "SKUs" but Cin7 Omni must have unique codes in order to function.

Can I bulk update my product's style codes?

Yes, it is possible to update existing products style codes in bulk.

Follow the steps below:

  1. Export the existing products that you wish to update by hovering over Actions and clicking Export Products from the Products module

  2. Download the CSV and open with Excel to edit

  3. In Excel, locate the products that you wish to update and modify accordingly

  4. Hover over Actions and click Import and Update Products

  5. Copy paste the updated data from the Excel into the box (Column headers must also be copied)

  6. Progress through the importing process and when you are asked to chose how to group your products, select Group by Code.

  7. When you are presented with the total numbers of products updated and the total number of new products created. Please make sure if you are only updating products that no NEW products are being created.
