Overview

The objective of this document is to guide you through the setup of your EDI connection, making sure that all the fields are clear and what they will be used for.

Electronic Data Interchange (EDI) setup instruction

Congratulations on making the decision to set-up an EDI connection with your supplier, using Cin7 Omni. With EDI, you benefit from real-time data communication between trading partners such as Walmart & Amazon. EDI is not just data transfer, it has specific standards that govern the exchange of electronic business documents (e.g., purchase orders, invoices, healthcare claims, etc.).

Note: To add a connection, contact your Cin7 Omni onboarding specialist or create a case with support.

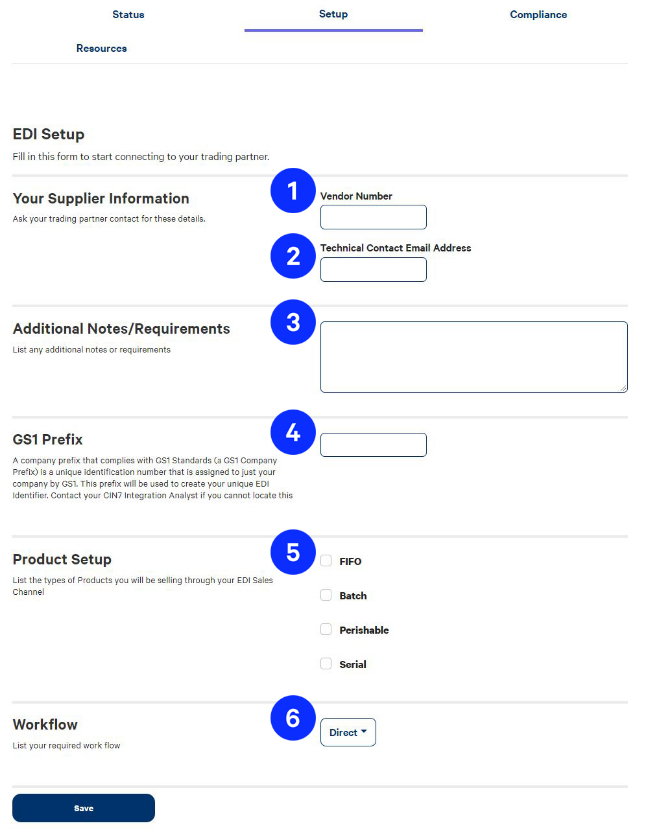

When starting the setup, you will be presented with the following screen. Descriptions of what is required for each step are provided below.

Submit details for EDI integration

Steps

Field

Required

Description

Step 1

Vendor Number

Yes

This is a unique EDI number generated by the Retailer for each of their Suppliers, to transact via EDI. CIN7 Omni will use the Vendor number to configure the EDI connection with the Retailer.

Step 2

Technical Contact Email Address

Yes

The Retailers’ technical contact in order to perform compliance testing.
Once compliance testing is completed will the EDI connection be able to go live.

Step 3

Additional Notes/Requirements

No



Step 4

GS1 Prefix

No

As a Supplier, do you use GS1-purchased barcodes? If yes, please provide the first 7 digits of the barcode, referred to as the “prefix”.
These are used to generate SSCC labels when setting up the EDI connection.

Step 5

Product Setup

Yes



FIFO

The default method of storing stock, first received are the first out.

Batch

Each product is given a batch number.

Perishable

The expiry date for each product is tracked, for example food or medication.

Serial

Each product is given its own serial number.



Step 6

Workflow

Yes



Direct

Shipping is direct from Supplier to the Retailers’ store.

Direct DC

Shipping is direct from the Supplier to the Retailers’ store, but via a Distribution Centre

Dropship

Shipping is direct from the Supplier to the Retailers’ customers.



If multiple workflows are required with the same retailer, each would require a separate EDI integration.

In the event that Cin7 Omni find that we have not integrated with the specific Retailer, Cin7 Omni will advise and the following may be required:

  • The EDI standard used to trade with this retailer. For example, EDIFACT or X12.

  • Required messages to be transmitted via EDI. For example, common messages include Purchase Order (850,) ASN (856,) Invoice (810.)

  • EDI examples of the required messages.

Technical considerations

Scenario

Supported

Note

Build EDI integrations via APIs as a method of communication.

No

The required EDI file formats are not provided through this method.

Support for non-standard trading systems, for example using XML standards.

No



Sending product catalogue to Retailers, for example PRICAT.

No



Using a 3rd party EDI Integrator (VAN) on behalf of the customer (supplier).

Yes

There may be additional costs from 3rd party suppliers to perform compliance testing.
